14-Second Dry Time

950 Watts (Heat On)

330 Watts (Heat Off)

Meets 4" ADA protrusion guidelines

High, Medium, Low, Off Heat Control

Adjustable Speed and Sound Controller

Washable Pre-Filter

Description

The ThinAir® Hand Dryer is a high-efficiency
model that is surface-mounted and ADA-compliant.

ThinAir dries hands in 14 seconds*, uses 950
watts or less and has a slimmer profile to
meet ADA compliance standards.

Control includes a speed and sound control mechanism, adjustable heat control with High, Medium, Low, and Off Setting and a filter sensor that is activated should the filter become clogged. washable pre-filter.

Specification

Available in 110/120, & 208-277 voltage
Cover: Raven Black ABS
9 5/32" W X 13 15/16" H X 4" D
Weight: TA-RB - 8 lbs.
(1/2 HP / 30,000 RPM high, 20,000 RPM -low) which provides air velocity of 16,000 LFM at the air outlet
141°F (61°C) at a 72°F (22°C) ambient room temperature at the outlet and 101°(38°C)at the hands (4 inches [102 mm] below air outlet).
Heating element is constructed of Nichrome wire and mounted inside the blower housing, thereby being vandal-resistant.
Control assembly is activated by an infrared optical sensor
35-second lock-out feature
5 Year Warranty

Support PDF

Spec Sheet

Product Data

ThinAir Hepa Sheet

Repair/Replacement Parts

ThinAir Installation Instructions

Troubleshooting

Digital Catalog

Thin Air Hand Dryers

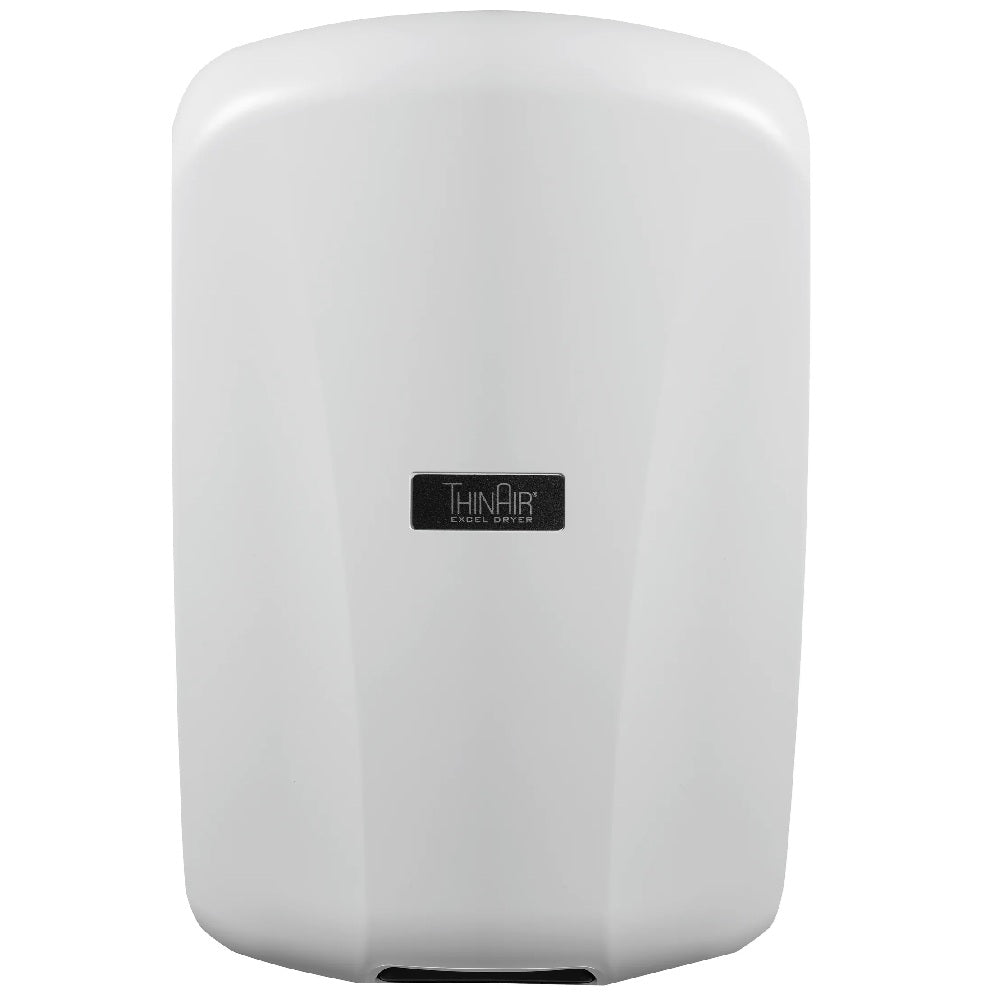

ThinAir® Hand Dryer, ADA-Compliant - White ABS #TA-ABS

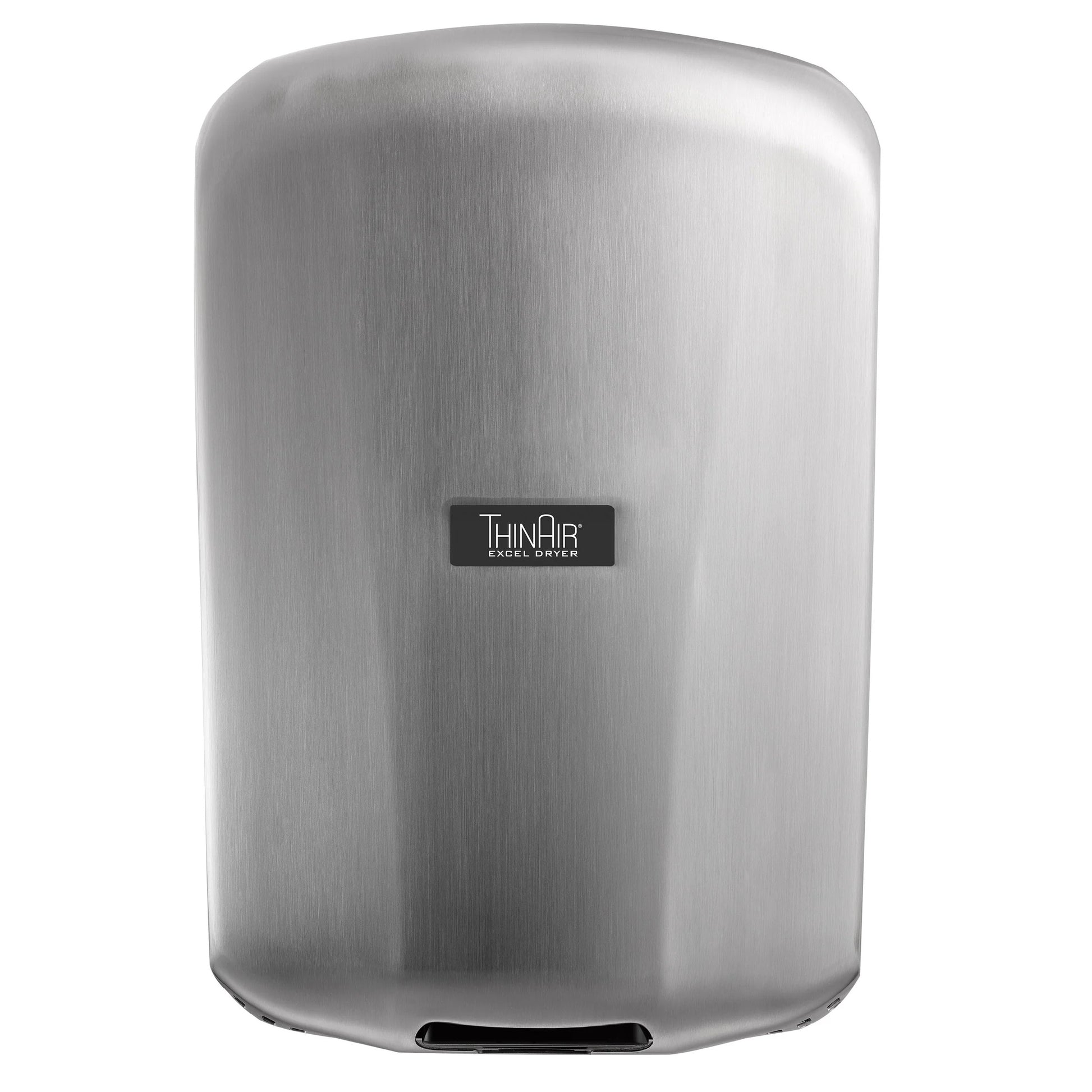

ThinAir® Hand Dryer, ADA-Compliant - Stainless Steel #TA-SB

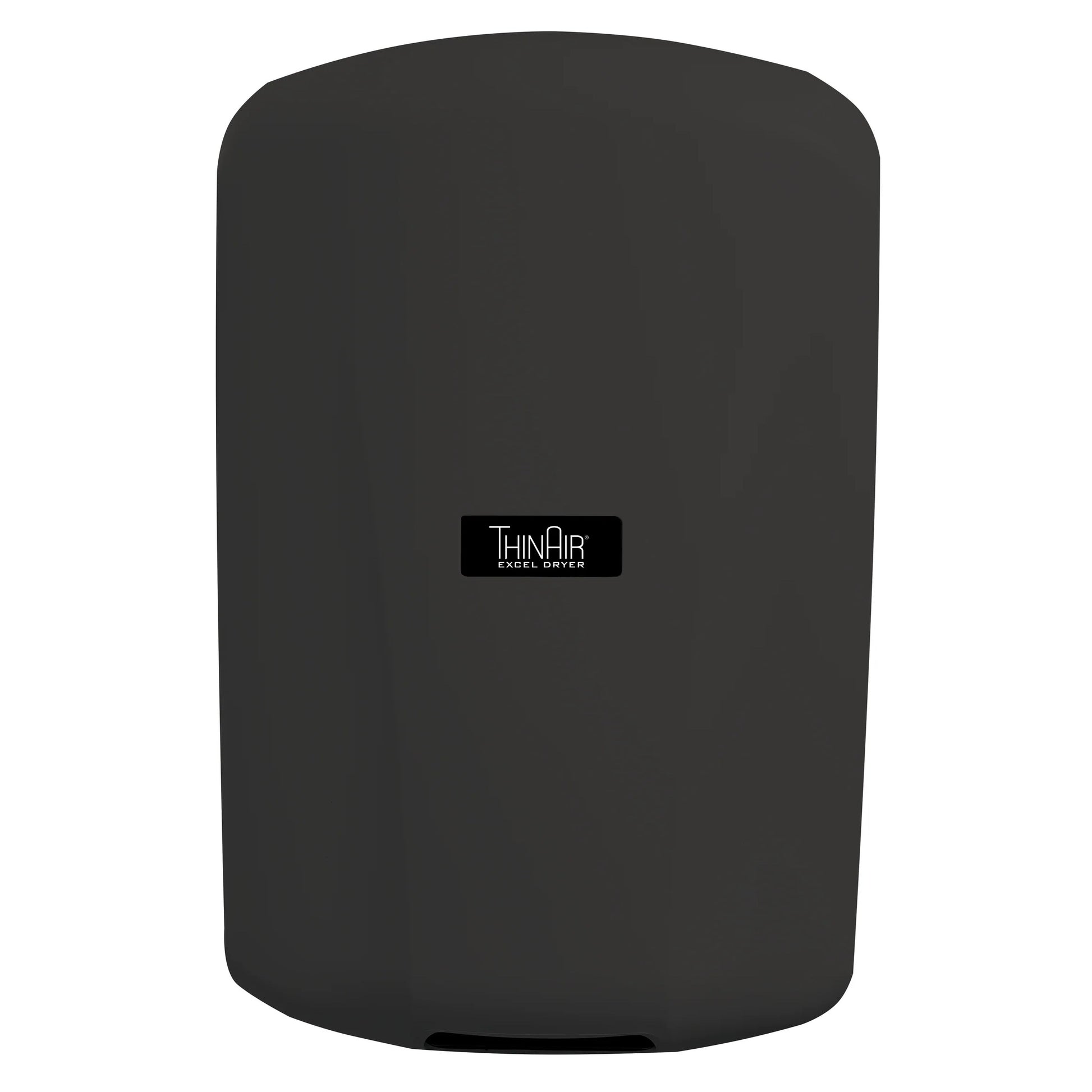

ThinAir® Hand Dryer, ADA-Compliant - Raven Black

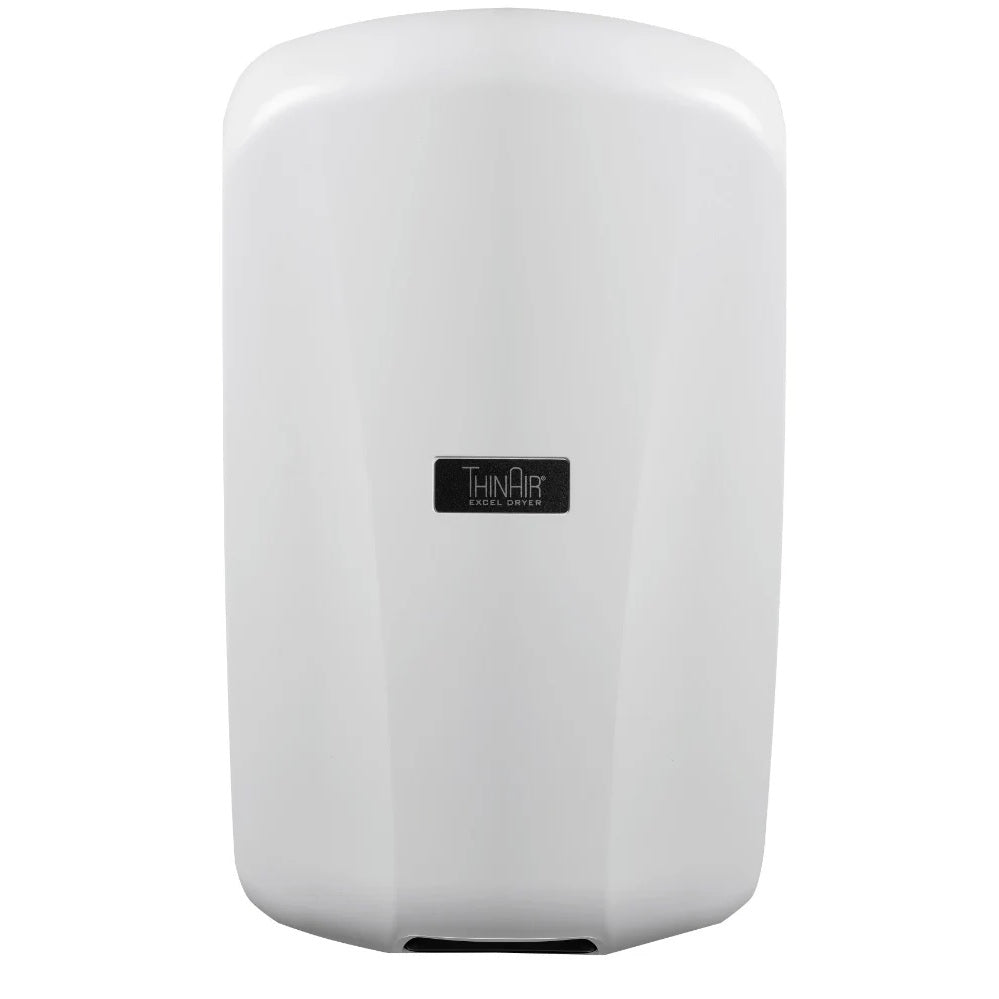

ThinAir® Hand Dryer, ADA-Compliant - White Epoxy #TA-W

ThinAir® Hand Dryer, ADA-Compliant - Graphite #TA-GR
