Size | 4oz (125cc)
Application | 1 Point
Technology | Powerful mechanical fixed-displacement pump w/Jackscrew Mechanism
Dispensing Power | Up to 200 PSI may be remotely mounted to 20'
Power Source | Battery pack Included
Cycle | Replaceable single-use cartridge
LED Indicators | Tri-color LEDs to indicate normal operation, low battery, low temp
Weatherproof | Suitable for outdoors
Dispensing Rate | Standard timed intervals or custom programming available
Replaceable, one-time use cartridge - Customer-specified lube
Replacement Cartridges must be ordered separately (shown)

*Due to D.O.T (Hazardous Materials Regulations) this item can not ship via Air or to Alaska, Hawaii, or Internationally

Description

The Jack-Luber™ is a self-contained, microprocessor-controlled, motor-driven automatic lubricator. The Jack-Luber™ lubricator operates using a jackscrew that pulls the piston down to the lubricant outlet. This dispenses the lubricant at a controlled rate at pressures up to 200 PSI. This pressure allows the Jack-Luber™ to be used with long feed line pipework, and it can even cycle progressive distributors, allowing one Jack-Luber™ to feed several bearings. When one or a combination of selector switches are turned on, the unit will activate at selected intervals. At each interval, approximately 0.5 grams of grease will be delivered to the bearing. The grease output is not affected by temperature or altitude. When the unit is empty, simply change the replaceable lubricant reservoir and battery pack.

Specification

Manufacturer PT#: JAK125L
Size | 4oz capacity (125cc)
Temperature Range: -4°F to +131°F (-20°C to +55°C)
Dispensing Power | Up to 200 PSI may be remotely mounted to 20'
Self-Contained
Stand-Alone Automatic
Multi-Point (with 2port distribution block)
Replaceable, one-time-use cartridge
filled with customer-specified lubricant
Set to empty in 15 days or up to 2 years

Support PDF

Spec Sheet

Installation Instructions

ATS Jack-Lubers

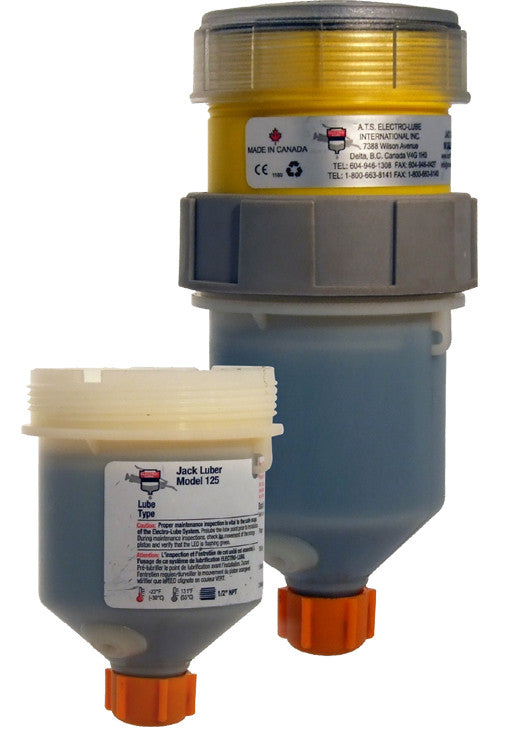

ATS Jack-Luber™ Model 125cc w/ Cartridge & Battery pack #JAK125L

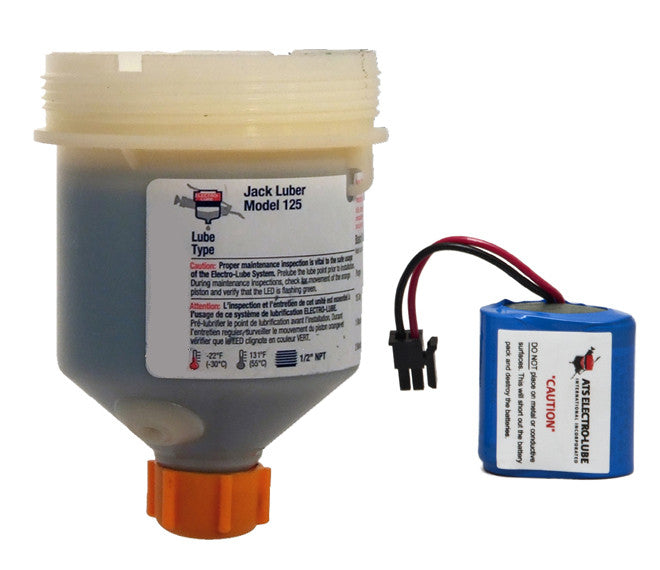

ATS Jack-Luber™ - 125cc Replacement Cart w/Battery (4oz)

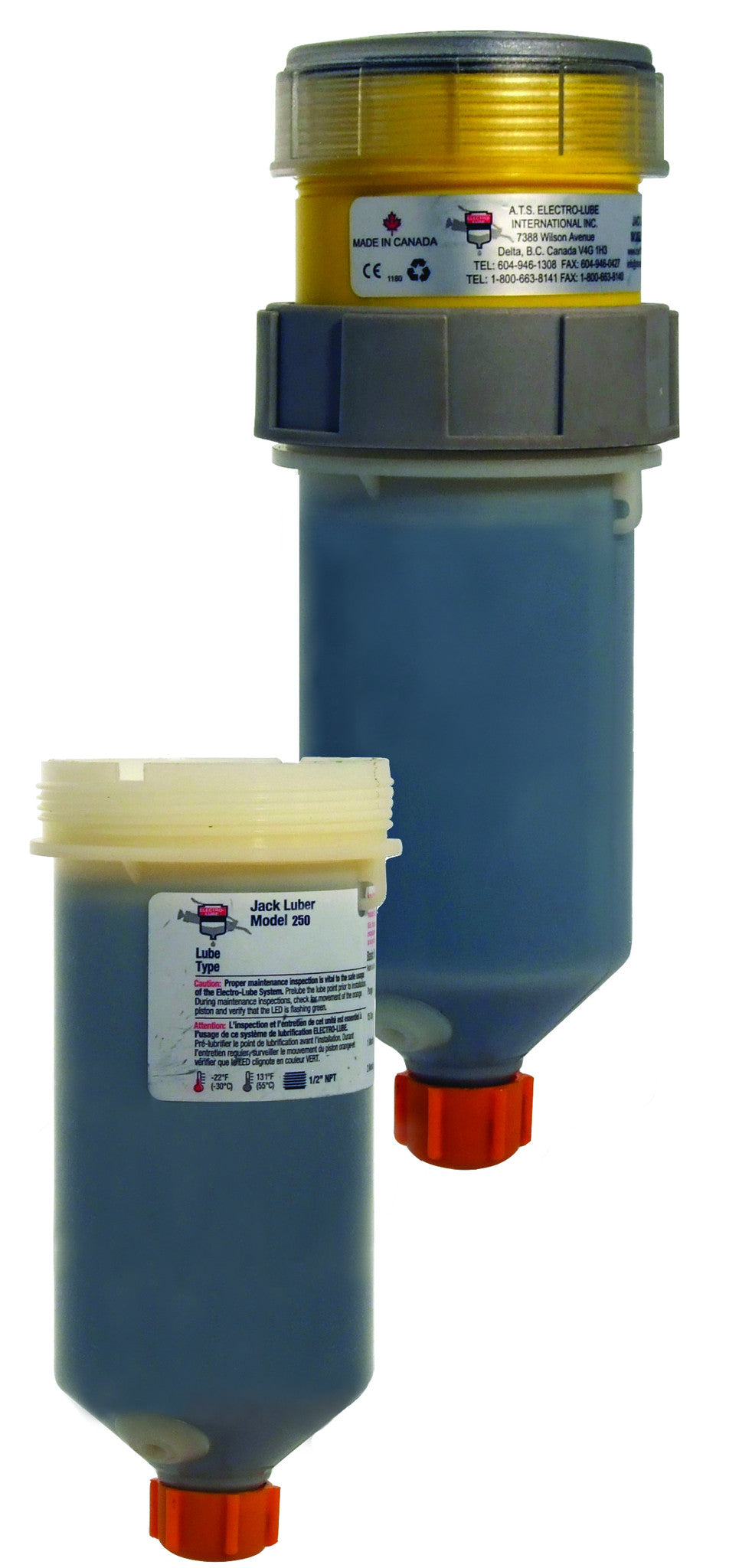

ATS Jack-Luber™ Model 250cc w/ Cartridge & Battery pack #JAK250L

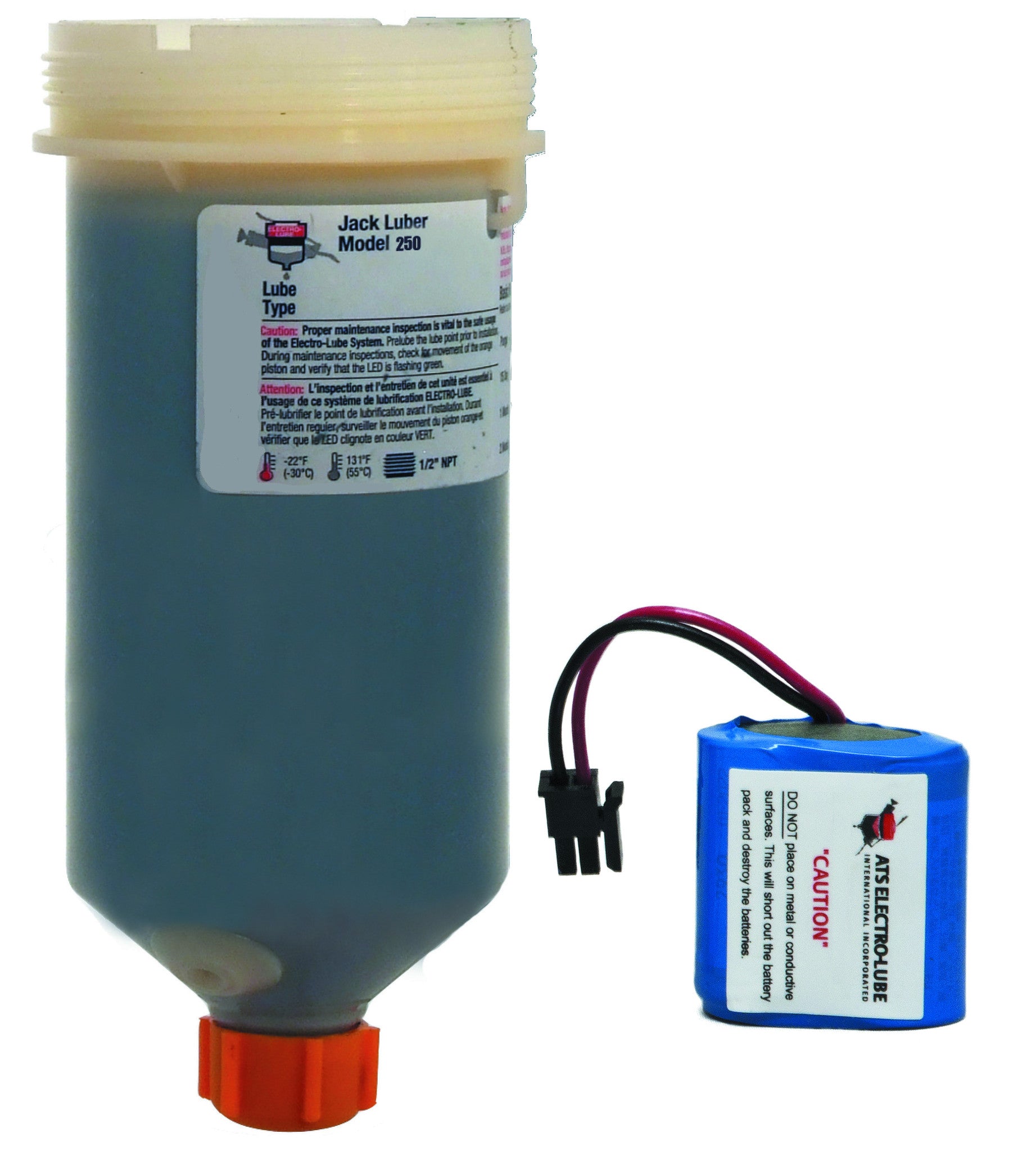

ATS Jack-Luber™ - 250cc Replacement Cart w/Battery (8oz)
