High Efficiency

Non-Adjustable

Gear Motor Driven

Chrome Plated Brass

GOOSENECK

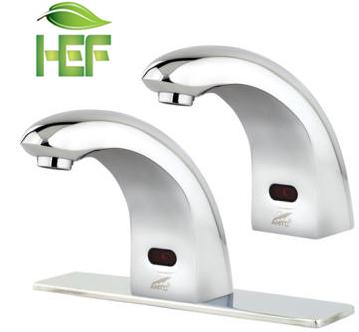

Automatic Faucet System For Tempered or Hot/Cold Water Operation

Description

The FIXEDFLO® Advantage
The FIXEDFLO® is the first and only high-efficiency faucet (HEF) system providing ultimate water savings through non-adjustable or “fixed” water flow. The FIXEDFLO® sensor faucet system does not use a typical diaphragm. Instead, a uniquely designed internal water flow mechanism allows the faucet to stream at a pre-set flow rate that cannot be externally altered even by the use or replacement of an aerator. The FIXEDFLO sensor faucet system is available in 0.35gpm and 0.5gpm water flow rates. The FIXEDFLO® line is ideal for all public facilities where water conservation is a priority.

The unique design of the FIXEDFLO® Automatic Faucet System allows for the use of various power options including battery power, electrical power (with battery back-up), or an environmentally friendly hydro-power electric generator.

Specification

- Chrome Plated Solid Brass Spout (Standard)
- Less Than 0.25% Lead Content by Weighted Average
- Patented BRV® and Gear Motor Drive
- Hands Free Infrared Sensor Activation
- Powered by Four (4) C-Cell Batteries (Included)- Easy Battery Replacement
- No Water Shut Off Necessary- Removable Filtering System (Easily Cleaned)
- 1-Hole Center-set Mounting
- 1 Second Shut Off Delay
- Self-Adjusting Sensor Range
- Automatic Water Flow Shut-Off 10 Seconds
- Operating Water Pressure: 10-125 PSI
- Easy Installation

Options and Accessories

COVER PLATES
- CP4 Cover Plate for 4” Center Set (6.25” Length)
- CP8 Cover Plate for 8” Center Set (10.25” Length)
- CP8-1 Cover Plate for 8” Center Set (12.25” Length)

ALTERNATE POWER OPTIONS
- HG01 Plug-in Hydro-Power Electric Generator
- AD01 Plug-in 6-Volt AC Power Adapter
- AD01-3 Plug-in 6-Volt AC Power Adapter with extensions for 3 units

TEMPERATURE MIXING VALVES
- MV Mechanical Mixing Valve
- TMV Thermostatic Mixing Valve (ASSE 1070)
