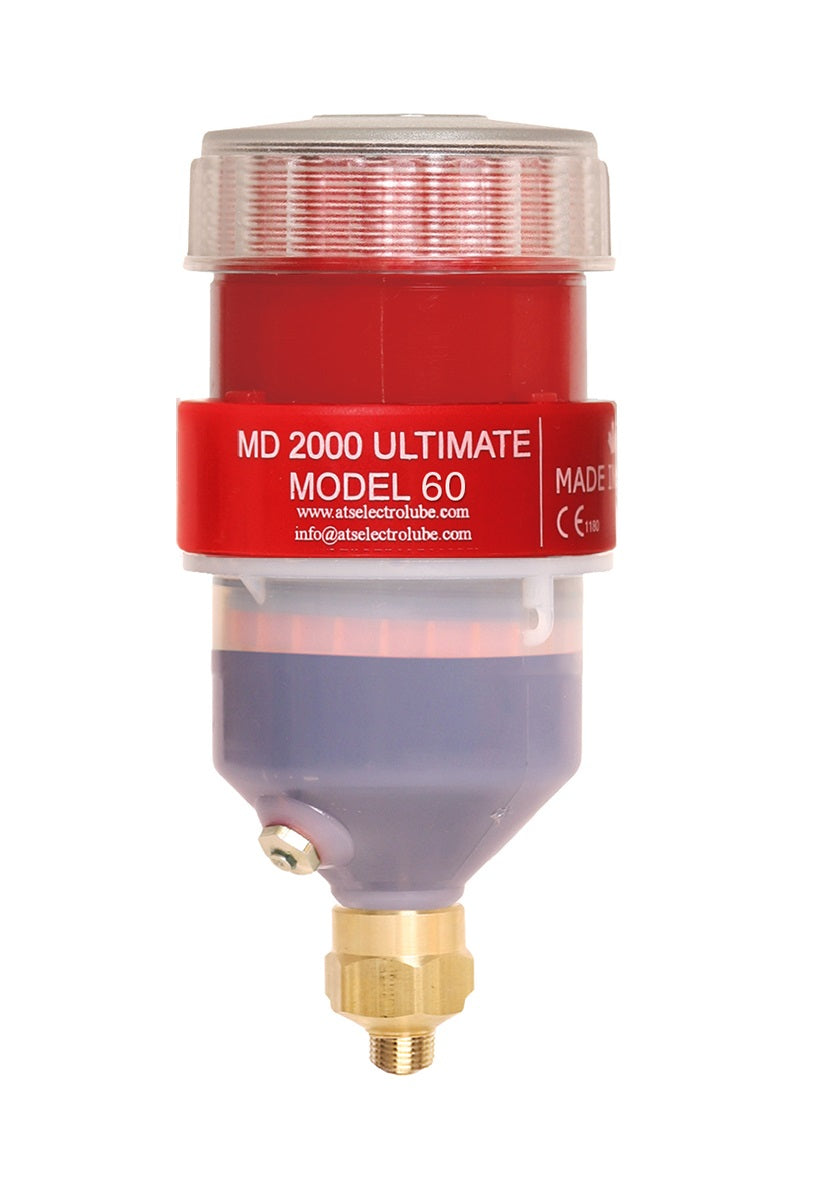

ATS Ultimate Luber™ - Model 60
Pickup currently not available
Our ATS Ultimate Luber™ Model 60 is an advanced lubing system designed to reduce maintenance time and cost while improving efficiency. The system boasts a powerful 60:1 gear reduction ratio, four-way splash lubrication, and a low-resistance air motor for faster, more effective lubrication.
-
Application | Single or Multi-Point
-
Size | 2 oz capacity (60 cc)
-
Technology | Powerful mechanical fixed-displacement pump
-
Dispensing Power | Up to 1000 PSI Can be remotely mounted up to 30 ft
-
Power Source (not included) | Battery pack or remote AC/DC power (call for remote options)
-
Cycle | Refillable with standard grease gun or pump
-
Operating Span | Refilled as needed Variable from 14 days to 2 years
-
LED Indicators | Tri-color LEDs to indicate normal operation, low battery, low temp
-
Weatherproof | Suitable for outdoor, Weathercap available
-
Dispensing Rate | Standard timed intervals or custom programming available
-
Includes 1/2"F X 1/4"m Brass Adapter
Description
The Ultimate Luber™ is a powerful, motor-driven automatic lubricator that is refillable using standard grease guns. Its microprocessor-controlled, energy efficient motor delivers grease to a fixed displacement pump which produces pressures up to 1000 PSI. This strength allows the Ultimate Luber™ to drive lubricant through long feed lines and to cycle progressive distributors to feed several bearings consecutively. When a dispensing cycle is selected, the units will activate at programmed intervals. At each interval, the Ultimate Luber™ dispenses approximately .625 grams of grease. Neither temperature nor altitude will affect the lubricant output.
Specification
- Manufacturer PT#: ULT60N
- Size | 2 oz capacity (60 cc)
- Temperature Range: -4°F to +131°F (-20°C to +55°C)
- Dispensing Power | Up to 1000 PSI
- Can be Remote Mounted to 30 feet
- Multi-Point Configuration up to 12 points using progressive Distribution Block
- Set to empty in 15 days or up to 1 year
