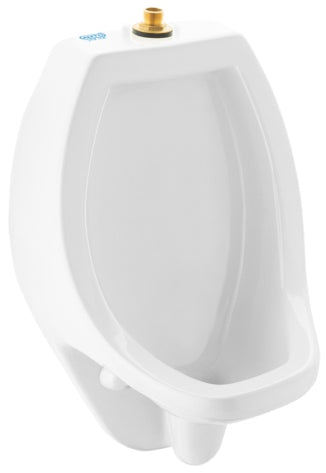

Ultra High Efficiency Quarter Stall Washout Urinal AUU-1018-14

Buy now at only:
$ 138.60 *Please call us for special pricing

Vitreous China Fixture
Flush volume is determined by flushometer used with urinal
Flush Cycle – 0.125 gpf to 1.0 gpf / 0.5 Lpf to 3.8 Lpf

Please Call for Freight Charges 1-800-858-2377

Description

Ultra High Efficiency Quarter Stall Top Spud Washout Urinal

Fixture Specification

- Complies with ADA Accessible Standards
- White Color
- Wall Hung Vitreous China
- Washout Flushing Action
- Elongated Rim
- Integral Flushing Rim
- Integral Trap
- 3/4” (19mm) I.P.S. Top Spud Inlet (Included)
- 2” (50mm) NPT Outlet Flange (Included)
- 100% Factory Tested
- Hanging Bracket (1 Included)
- Flushometer Not Included

Plumbing System Requirements
- Minimum Flowing Pressure: 25 PSI
- Maximum Static Pressure: 80 PSI
- Minimum Flow Rate: 18 GPM
