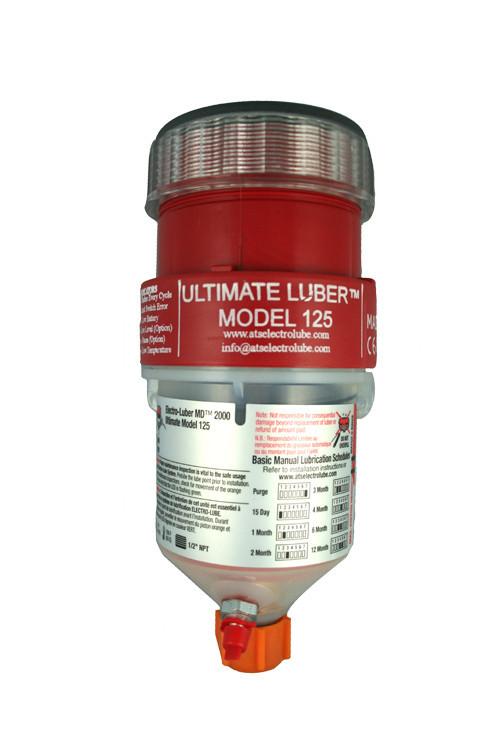

ATS Ultimate Luber™ - Model 125

ATS Ultimate Luber™ - Model 125

Buy now at only:
$ 293.30 *Please call us for special pricing


This advanced luber tool from ATS is a top-of-the-line lubricant solution. Featuring precision engineering, superior coating materials and a patented adjustable dial-flow tip, the Model 125 is designed to ensure long-lasting lubrication with minimal wastage. A streamlined process and increased torque make it ideal for industrial operations needing to deliver high-quality lubrication performance.


  • Application |  Single or Multi-Point (up to 12 points)
  • Size |  4 oz capacity (125 cc)
  • Technology |  Powerful mechanical fixed-displacement pump
  • Dispensing Power |  Up to 1000 PSI Can be remotely mounted up to 30 ft
  • Power Source (not included) |  Battery pack or remote AC/DC power (call for remote options)
  • Cycle |  Refillable with standard grease gun or pump
  • Operating Span |  Refilled as needed Variable from 14 days to 2 years
  • LED Indicators |  Tri-color LEDs to indicate normal operation, low battery, low temp
  • Weatherproof |  Suitable for outdoor, Weather cap available
  • Dispensing Rate |  Standard timed intervals or custom programming available
  • Includes 1/2"F X 1/4"m Brass Adapter

Description

The Ultimate Luber™ is a powerful, motor-driven automatic lubricator that is refillable using standard grease guns. Its microprocessor-controlled, energy-efficient motor delivers grease to a fixed displacement pump which produces pressures up to 1000 PSI. This strength allows the Ultimate Luber™ to drive lubricant through long feed lines and to cycle progressive distributors to feed several bearings consecutively. When a dispensing cycle is selected, the units will activate at programmed intervals. At each interval, the Ultimate Luber™ dispenses approximately 1.25cc of grease. Neither temperature nor altitude will affect the lubricant output.

Specification

  • Manufacturer PT#: ULT125N
  • Size | 4 oz capacity (125 cc)
  • Temperature Range: -4°F to +131°F (-20°C to +55°C)
  • Dispensing Power | Up to 1000 PSI
  • Can be Remote Mounted to 30 feet
  • Multi-Point Configuration up to 12 points using progressive distribution Block
  • Set to empty in 15 days or up to 1 year

Support PDF

Spec Sheet

Installation Instructions
