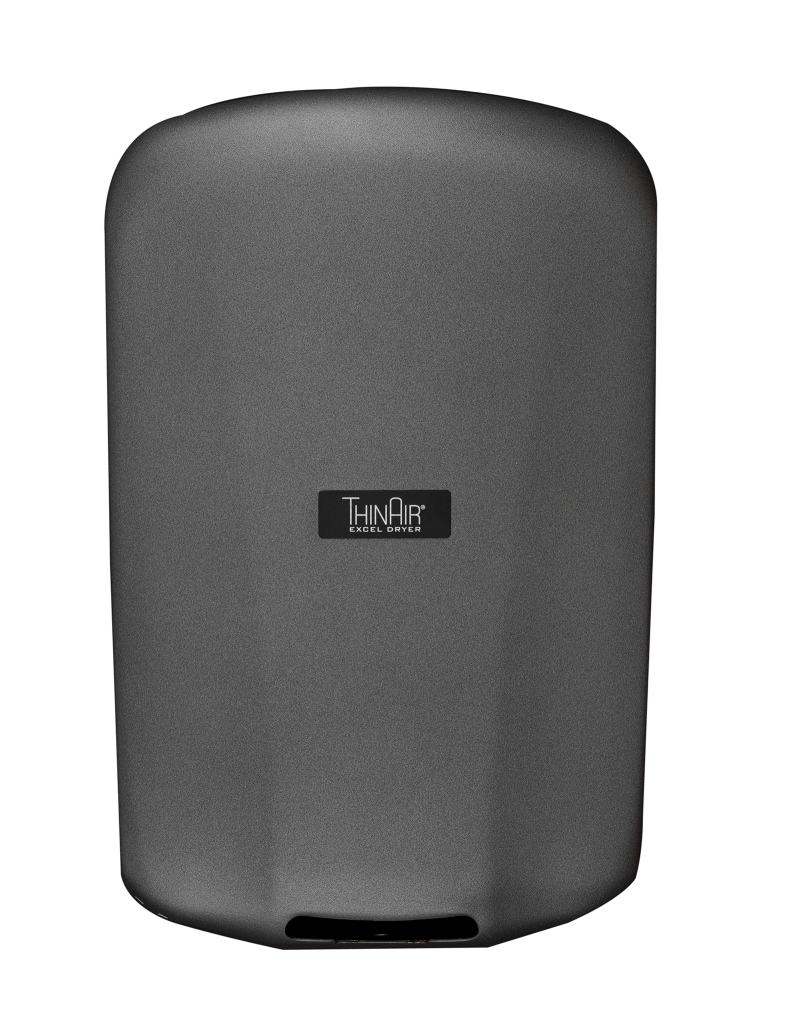

ThinAir® Hand Dryer, ADA-Compliant - Graphite #TA-GR

14 Second Dry Time950 Watts (Heat On) 330 Watts (Heat Off)Meets 4" ADA protrusion guidelinesHigh, Medium, Low, Off Heat ControlAdjustable Speed and Sound ControllerWashable Pre-Filter

Description

The ThinAir® Hand Dryer is a high-efficiency model that is surface-mounted and ADA compliant.

ThinAir dries hands in 14 seconds*, uses 950 watts or less and has a slimmer profile to
meet ADA compliance standards.

Control includes a speed and sound control mechanism, adjustable heat control with High, Medium, Low, Off Setting and a filter sensor which is activated should the filter become clogged. washable pre-filter.



Specification

• Available in 110/120, & 208-277 voltage
• Cover: Graphite
• 9 5/32" W X 13 15/16" H X 4" D
• Weight: TA-GR - 8 lbs.
• (1/2 HP / 30,000 RPM high, 20,000 RPM -low) which provides air velocity of 16,000 LFM at the air outlet
• 141°F (61°C) at a 72°F (22°C) ambient room temperature at the outlet and 101°(38°C)at the hands (4 inches [102 mm] below air outlet).
• Heating element is constructed of Nichrome wire and mounted inside the blower housing, thereby being vandal-resistant.
• Control assembly is activated by an infrared optical sensor
• 35-second lock-out feature
• 5 Year Warranty
