ATS Titan CL Luber™ - Multi Point Lubricator

ATS Titan CL Luber™ - Multi Point Lubricator

Buy now at only:
$ 682.70 *Please call us for special pricing

  • Application |  Multi-Point (up to 12 points)
  • Technology |  Powerful mechanical fixed-displacement pump
  • Dispensing Power |  Up to 1000 PSI Can be remotely mounted up to 30 ft
  • Power Source |  Battery pack or remote AC/DC power (call for remote options)
  • Cycle |  Refillable with standard Cartridge
  • LED Indicators |  Tri-color LEDs to indicate normal operation, low battery, low temp
  • Weatherproof |  Suitable for outdoor, Weather cap available
  • Dispensing Rate |  Standard timed intervals or custom programming available
  • Includes Mounting Plate

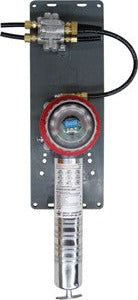

  • Optional Distribution Block (shown)


The Titan CL Luber™ is a powerful, motor-driven automatic lubricator which is built on the proven Ultimate Luber™ technology. The Titan CL Luber™ is refillable by simply replacing a standard grease cartridge. Its microprocessor-controlled, energy-efficient motor delivers grease to a fixed displacement pump which produces pressures up to 1000 PSI. This strength allows the Titan CL Luber™ to drive lubricant through long feed lines and to cycle progressive distributors to feed several bearings consecutively. When a valid dispensing cycle is selected, the units will activate at programmed intervals. At each interval, the Titan CL Luber™ dispenses approximately 1.25cc of grease. Neither temperature nor altitude will affect the lubricant output.


  • Size | Requires one 14oz grease cartridge
  • Temperature Range: -4°F to +131°F (-20°C to +55°C)
  • Dispensing Power | Up to 1000 PSI
  • Can be Remote Mounted to 30 feet
  • Multi-Point Configuration up to 12 points using progressive distribution Block
  • Set to empty in 15 days or up to 2 years

Support PDF

Spec Sheet

Installation Instructions
