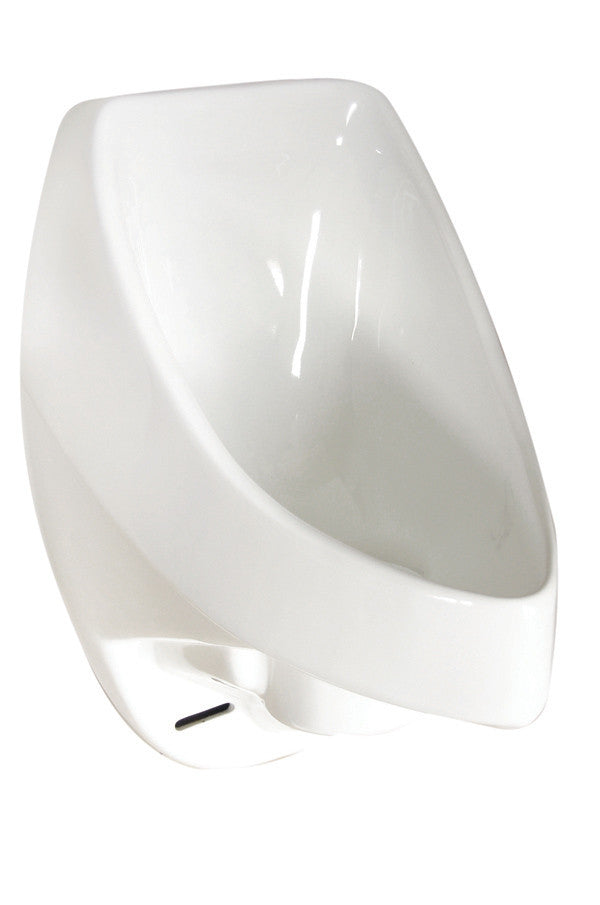

Waterless No-Flush™ Urinal Baja™ Model #2104

1/2

$ 365.00

Vitreous China (VC) Urinal
22"W x 14"H x 15"D
ADA Compliant
2" Interior ceramic drain
*Please Call for Freight Charges 1-800-858-2377

Features and Benefits

The Baja Installs like a flushed urinal to the 2" waste line with a brass flange & gasket- No adapters needed!
Full 2" interior drain - Urinal does not need to be removed from the wall for snaking. Saves time!
Closed urinal bottom - Avoid drain vandalism
EcoTrap® inserts No gasket required- Simple press-fit
Includes (2) EcoTrap® inserts and Mounting hardware (New installations require a brass flange and gasket set #5001)
LEED® Applicable

Specification

Size: 22"w x 14"h x 15" d

Warranty: 3 Year Limited

Approx. Weight: 29 lbs (13.18 kg)

For Standard Installation:
Mount at 24" above the finished floor to the lip of urinal or as required by the architect. Center drain line to be at 16.75" off the finished floor.

For ADA Requirements:
Mount at 17" above the finished floor to the lip of urinal. ADA center drain line to be at 8" off the finished floor.

New Installations:
2" Brass Flange /gasket required (not included)
