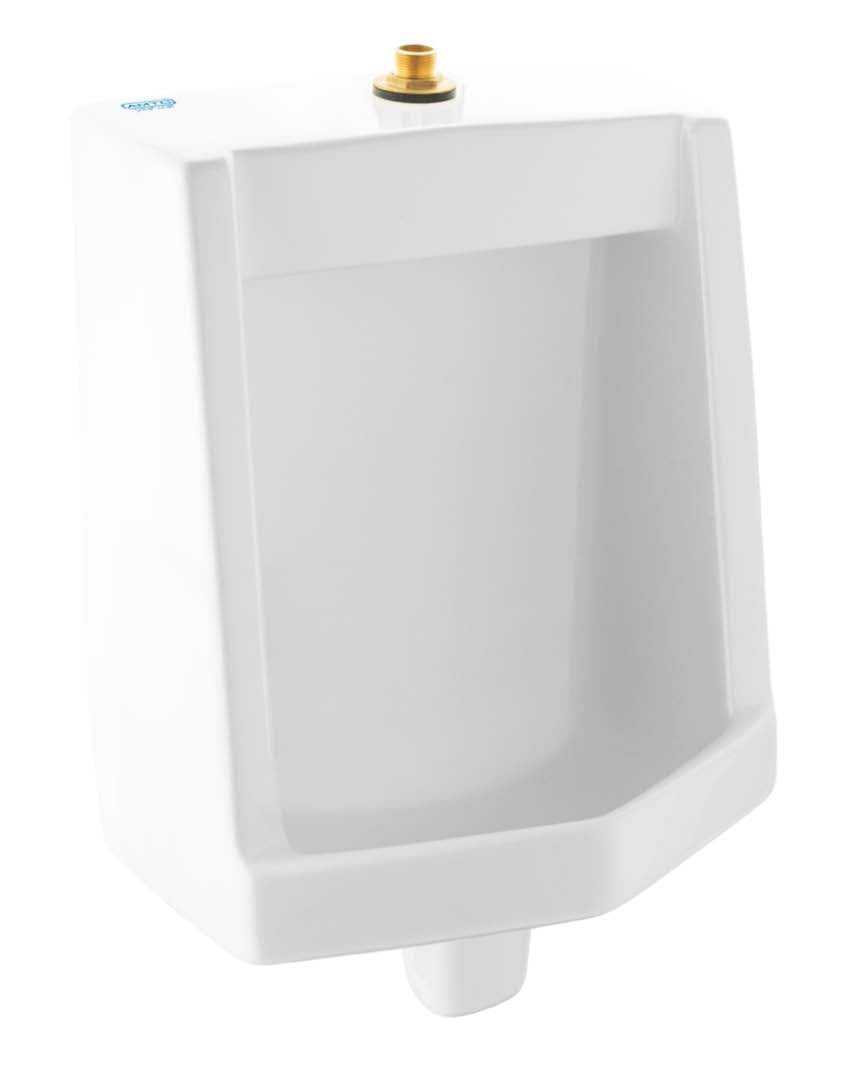

Ultra High Efficiency Half Stall Washout Urinal AUU-1018-12

• Vitreous China Fixture
• Flush volume is determined by flushometer used with urinal
• Flush Cycle – 0.125 gpf to 1.0 gpf / 0.5 Lpf to 3.8 Lpf

Description

Ultra High Efficiency Half Stall Top Spud Washout Urinal

Fixture Specification

- Complies with ADA Accessible Standards
- White Color
- Wall Hung Vitreous China
- Washout Flushing Action
- Extended Privacy Shields
- Elongated Rim
- Integral Flushing Rim
- Integral Trap
- 3/4” (19mm) I.P.S. Top Spud Inlet (Included)
- 2” (50mm) NPT Outlet Flange (Included)
- 100% Factory Tested
- Hanging Bracket (2 Included)
- Flushometer Not Included

Plumbing System Requirements
- Minimum Flowing Pressure: 25 PSI
- Maximum Static Pressure: 80 PSI
- Minimum Flow Rate: 18 GPM
