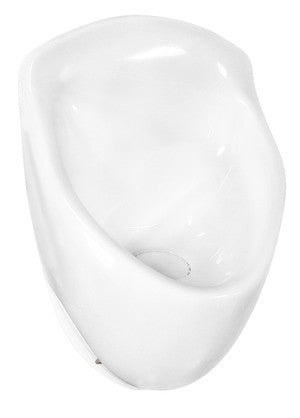

Waterless No-Flush™ Urinal Anza™ Model #2005

1/2

$ 395.00

This Waterless Urinal has:
High-Performance Composite Material
16.5"W x 27.75"H x 14"D
ADA Compliant

Features and Benefits

The Anza #2005 installs like a flushed urinal to the 2" drain line via a gasket and flange. No adapters needed!
A full 2" interior drain line allows for easy line cleaning if needed. Urinal does not need to be removed from the wall for snaking. Saves time!
All wall drain units have a closed urinal bottom to avoid vandalism.
No gaskets or O-rings needed on EcoTrap® inserts. Simple press-fit!
Includes (2) EcoTrap® inserts and mounting hardware (New installations require a brass flange and gasket set #5001)
LEED® Applicable

Specification

Warranty: 3 Year Limited Warranty

Approx. Weight: 18 lbs (8.2.5 kg)

Complies with: A117, ASME A112.19.19, others.

For Standard Installation:
Mount at 24" above finished floor to lip of urinal or as required by architect. Center drain line to be at 15" off finished floor.

For ADA Requirements:
Mount at 17" above finished floor to lip of urinal. ADA center drain line to be at 8" off finished floor.

All New Installations:
2" Brass Flange is required (not included)
